BHARATH GCS
7-inch Display | Rugged ABS+
Dual Cameras | Long Battery Life

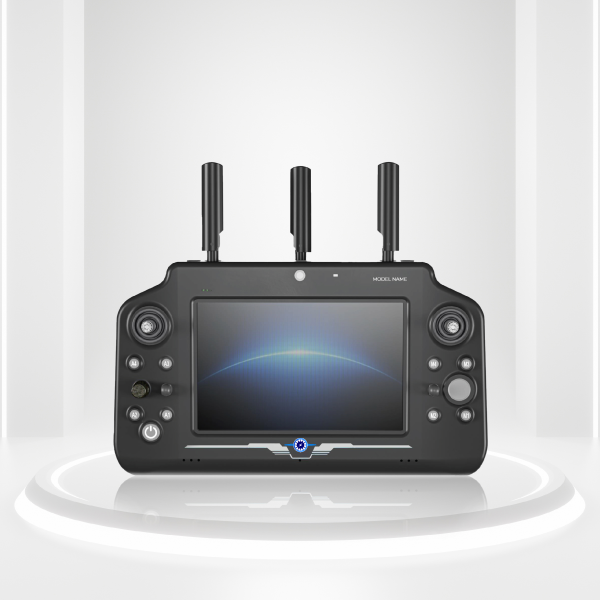

Our “Bharath Ground Control Station” (BHARATH GCS) is designed for industrial-grade drone operations, offering reliable communication, rugged durability, and advanced functionality for field missions.
Equipped with a 7-inch sunlight-readable display, dual front & rear cameras, fingerprint security, and a 20,000 mAh replaceable battery, the Bharath GCS ensures seamless mission control. Supported by comprehensive after-sales service and a strong PAN-India presence, it delivers trusted performance for professional drone applications.
- 7-inch sunlight-readable LCD display for clear visibility in outdoor conditions.
- 20,000 mAh replaceable Li-ion battery providing 5–10 hours of endurance.
- Dual front & rear cameras for enhanced situational awareness.
- Fingerprint sensor for secure and reliable access.
Display: 7-inch LCD, 1000 nits brightness, sunlight-readable
Battery: 20,000 mAh replaceable Li-ion, endurance 5–10 hrs
Camera: Dual cameras (front & rear) for field operations
Security: Integrated fingerprint sensor for user authentication
Durability: Rugged ABS+ body, designed for outdoor environments
Operating Range: Up to 1 km LOS, reliable in –10℃ to +55℃
| Parameter | Specification (GCS) |
|---|---|
| CPU | Quad-core |
| Transmission Distance | 1 km LOS (environment dependent) |
| Working Frequency | 2.400–2.5 GHz |
| Receiver Sensitivity | –92 dBm (typical) |
| Bandwidth | 20 MHz |
| Endurance | 5–10 hrs |
| Upgrade | USB upgrade |
| Supported App | QGroundControl (QGC) |
| Material | Rugged ABS+ |
| Screen Size | 7 inches |
| Screen Type | LCD, 1000 nits (sunlight readable) |
| RC Size | 290 × 150 × 50 mm |
| Battery | 20,000 mAh (replaceable Li-ion) |
| Weight | ~1.1 kg |
| Ports | USB Type-C ×2; TF ×1; HDMI ×1 |
| Operating Temperature | –10℃ ~ +55℃ |
| Working Environment | Humidity ≤ 85%; Pressure 86–106 kPa |
Differentiating Factors:
The IoTech GCS combines a high-brightness 7-inch display, long battery life, rugged ABS+ construction, dual cameras, and biometric security in a lightweight portable unit—making it a reliable companion for industrial drone operations in tough environments.
